Creating your First Widget Component

There are three learning objectives in this tutorial:

  1. Create a widget component in the existing plugin project.
  2. Modify the widget component to display the results from the completed algorithm component
  3. Deploy the widget component

Generating a widget component

Widgets are stored in the my_plugin/widgets folder. Use aiverify-plugin gw to generate your widget.

Run the following command to generate a new widget and create a dependency to the algorithm and input block components created earlier.

aiverify-plugin gw "my_widget" --name "My Widget" --description "My first widget" --dep "Algorithm,my_algorithm" --dep "InputBlock,my_inputblock" --minW 12 --dynamicHeight

Verify that the directory widgets exists in your current directory with the files for the widgets generated inside.

ls widgets

The following files are created:

  • my_widget.mdx
  • my_widget.meta.json
  • my_algorithm.sample.json
  • my_inputblock.sample.json

Edit the Widget Meta Data

Open the file my_widget.meta.json under the widgets folder and add the widget properties are as shown in highlight below below:

my_widget.meta.json
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
{
  "cid": "my_widget",
  "widgetSize": {
    "minW": 12,
    "minH": 1,
    "maxW": 12,
    "maxH": 36
  },
  "name": "My Widget",
  "description": "My first widget",
  "dynamicHeight": true,
  "dependencies": [
    {
      "cid": "my_algorithm"
    },
    {
      "cid": "my_inputblock"
    }
  ],
  "mockdata": [
    {
      "type": "Algorithm",
      "cid": "my_algorithm",
      "datapath": "my_algorithm.sample.json"
    },
    {
      "type": "InputBlock",
      "cid": "my_inputblock",
      "datapath": "my_inputblock.sample.json"
    }
  ],
  "properties": [
    {
      "key": "title",
      "helper": "Set the widget title (default \"Hello World\")",
      "default": "Hello World"
    }
  ]
}

Editing sample algorithm file

Open and edit my_algorithm.sample.json with a valid sample output from the algorithm or input block. This sample data will be passed to the MDX component props in the project canvas, and allows the MDX to display data based on sample input.

my_algorithm.sample.json
{"my_expected_results": [
      33280.0,
      40000.0,
      70000.0,
      50000.0,
      50000.0,
      40000.0,
      50000.0,
      0.0,
      90000.0,
      35000.0,
      80000.0,
      50000.0
  ]
}

Editing sample input block file

Open and edit my_inputblock.sample.json with a valid sample output from the algorithm or input block. This sample data will be passed to the MDX component props in the project canvas, and allows the MDX to display data based on sample input.

my_inputblock.sample.json
{
  "fname": "John",
  "lname": "Doe"
}

Editing MDX

Open and edit my_widget.mdx to implement the MDX content.

my_widget.mdx
export const algo_cid = "my_algorithm"
export const ib_cid = "my_inputblock"

# {props.properties.title}

{props.getIBData(ib_cid)?(
  <>
    <b>Input Block Data:</b>
    <p>
      <b>First Name:</b> {props.getIBData(ib_cid)["fname"]}<br/>
      <b>Last Name:</b> {props.getIBData(ib_cid)["lname"]}
    </p>
  </>
):(
  <div>No widget data</div>
)}

{props.getResults(algo_cid)?(
  <>
    <b>JSON output of algorithm</b>
    <pre>{JSON.stringify(props.getResults(algo_cid),null,2)}</pre>
  </>
):(
  <div>No algorithm data</div>
)}

Once you are done with the widget creation, you can proceed to deploy your plugin.

(Optional) Use the Playground to view the Widget.

Run the following command under the plugin directory to launch the Playground.

aiverify-plugin playground

Navigate to http://localhost:5000/ReportWidget/my_widget to view the widget you have created.

Playground - Widget

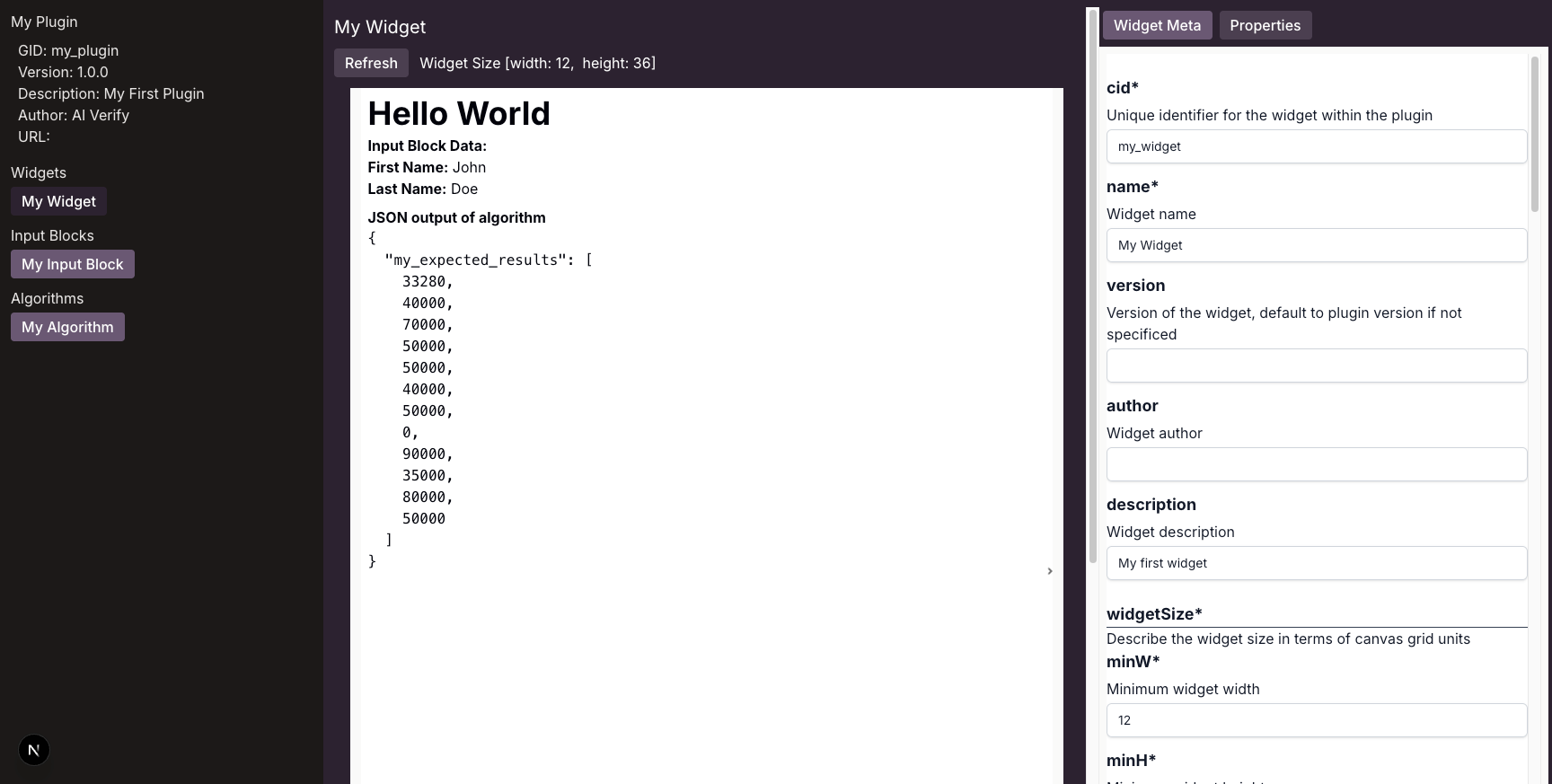

Once you make any edit to my_widget.mdx, you can click the Refresh button to view your changes. The Widget Meta tab on the right panel display your Widget meta information.

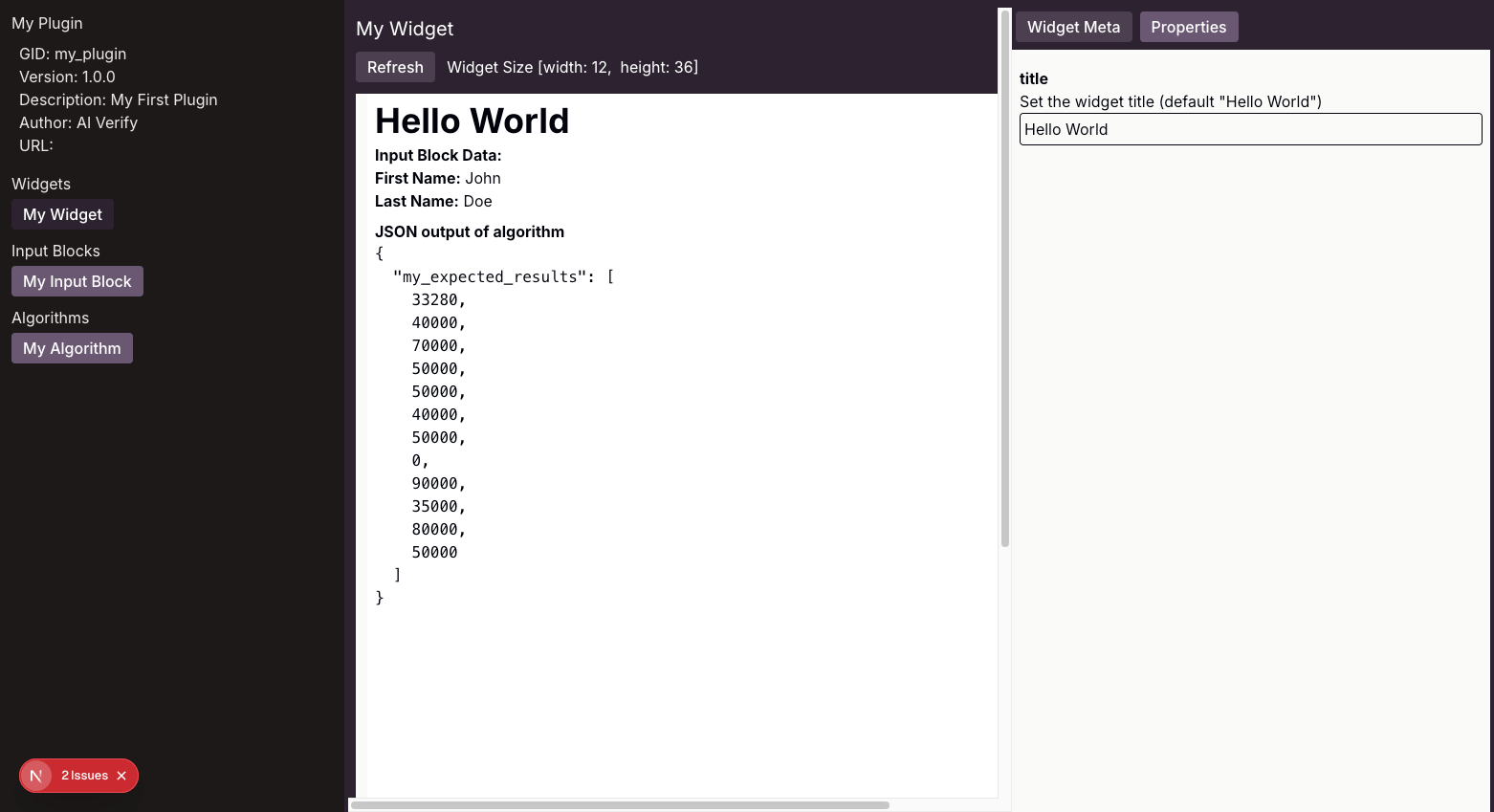

Select the Properties tab to see the widget properties defined. Then change the title property to other values. Click Refresh button to see the widget title updated to the new value you enter.

Playground - Widget Properties

To exit the Playground, type ctrl+c to terminate the application.
