Using the Playground

The Playground provides a UI that allows you to view your widgets and input blocks before installing to AI Verify.

$ aiverify-plugin playground --help
aiverify-plugin playground

Launch the plugin playround

Options:
  --help       Show help                                                                    [boolean]
  --pluginDir  Path to plugin directory                                       [string] [default: "."]
  --port       Playground port to listen on                                  [number] [default: 5000]
  --hostname   Playground hostname to listen on                       [string] [default: "localhost"]

To launch the playground, run the following command under a Plugin directory.

aiverify-plugin playground

Use your browser to navigate to http://localhost:5000. You should now be able to access the playground. To listen on another port besides the default port 5000, use the --port flag. For example to listen on port 8080,

$ aiverify-plugin playground --port=8080
Loading playground..
> Playground listening at http://localhost:8080

Now you can access the playground from http://localhost:8080.

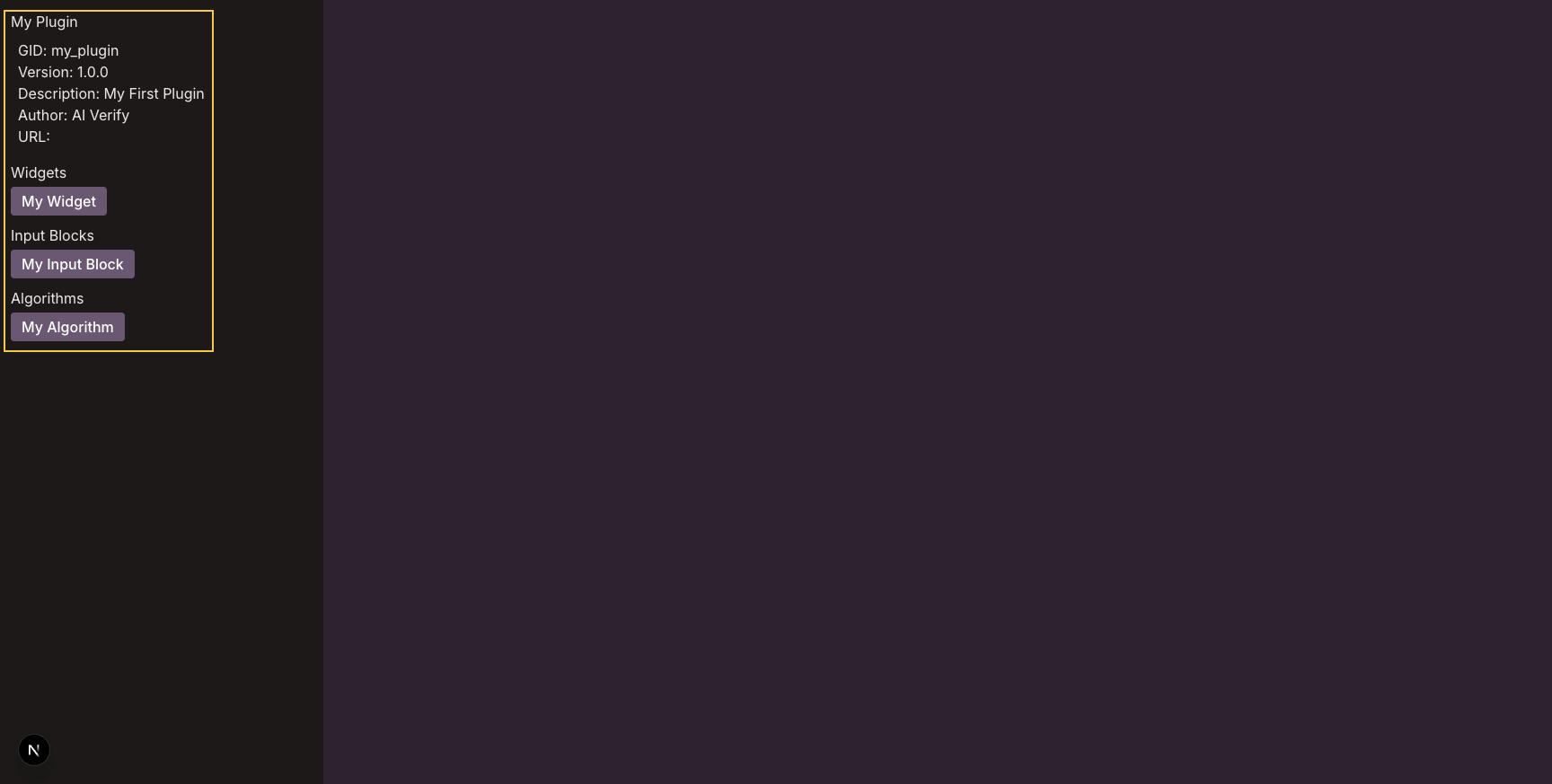

Playground Landing Page

Playground - Landing Page

The left panel display the plugin meta information as well as the menu bar with list of Widget, Input Block and Algorithm components found under the plugin. You can click on a component to view it.

Widgets

Playground - Widget

The widget page center panel displays the widget as it will appears in the Portal canvas. You can update the widget MDX file and then click the Refresh button to visualize your changes. Drag the component handle on the right and bottom of the widget to resize the widget.

The Widget Meta tab in the right panel displays the widget meta information defined in <widget cid>.meta.json.

Widget Properties

Playground - Widget 2

Click on the Properties tab on the right panel to view the widget properties defined in the widget meta.

Input Blocks

Playground - Input Block

The input block page center panel displays the input block component as it will appears in the Portal inputs. You can update the input block MDX file and then click the Refresh button to visualize your changes.

The Input Block Meta tab in the right panel displays the input block meta information defined in <input block cid>.meta.json.

Input Block Data Output

Playground - Input Block

Click on the Data Output tab ib tge right panel to view the JSON data that will be saved in the Portal upon changes to the input block data fields.

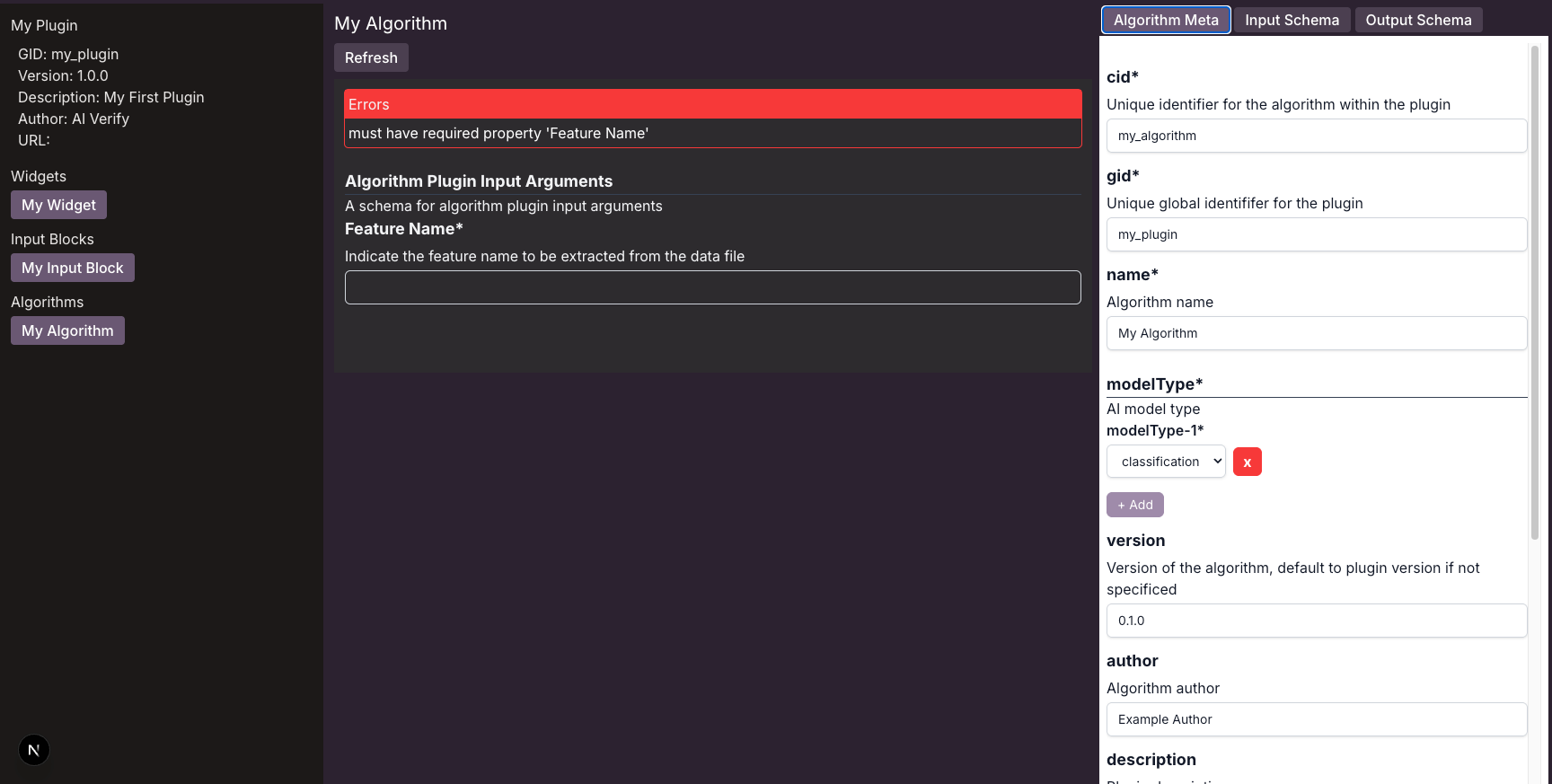

Algorithms

Playground - Input Block

The algorithm page center panel displays algorithm input arguments that will be displayed in the Portal Test Run page. The input arguments are defined in input.schema.json. You can update input.schema.json and then click the Refresh button to visualize the changes.

The Algorithm Meta tab in the right panel displays the algorithm meta information defined in algo.meta.json.

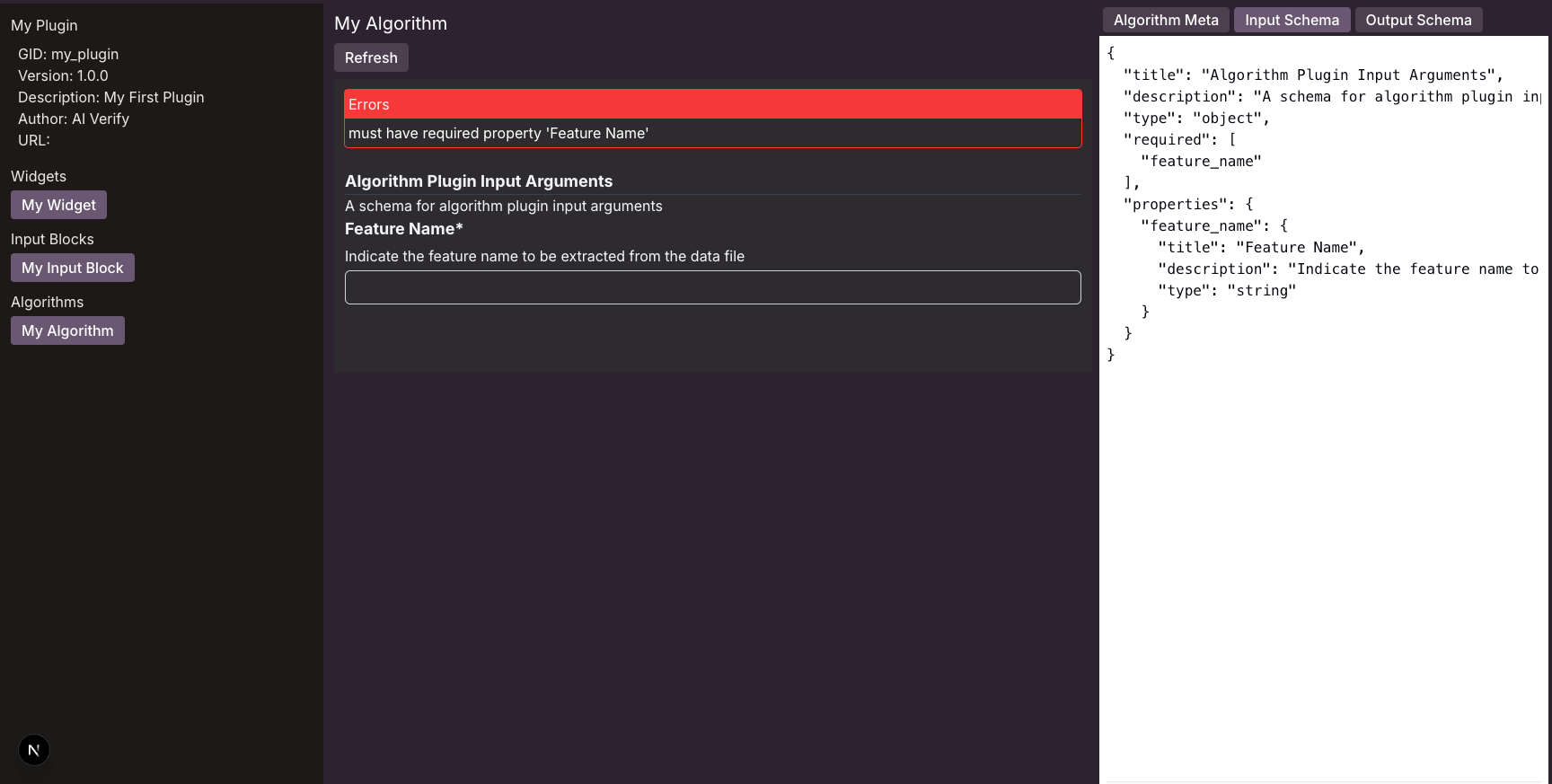

Input Schema

Playground - Input Block

Click on the Input Schema tab to view the input schema defined for this algorithm.

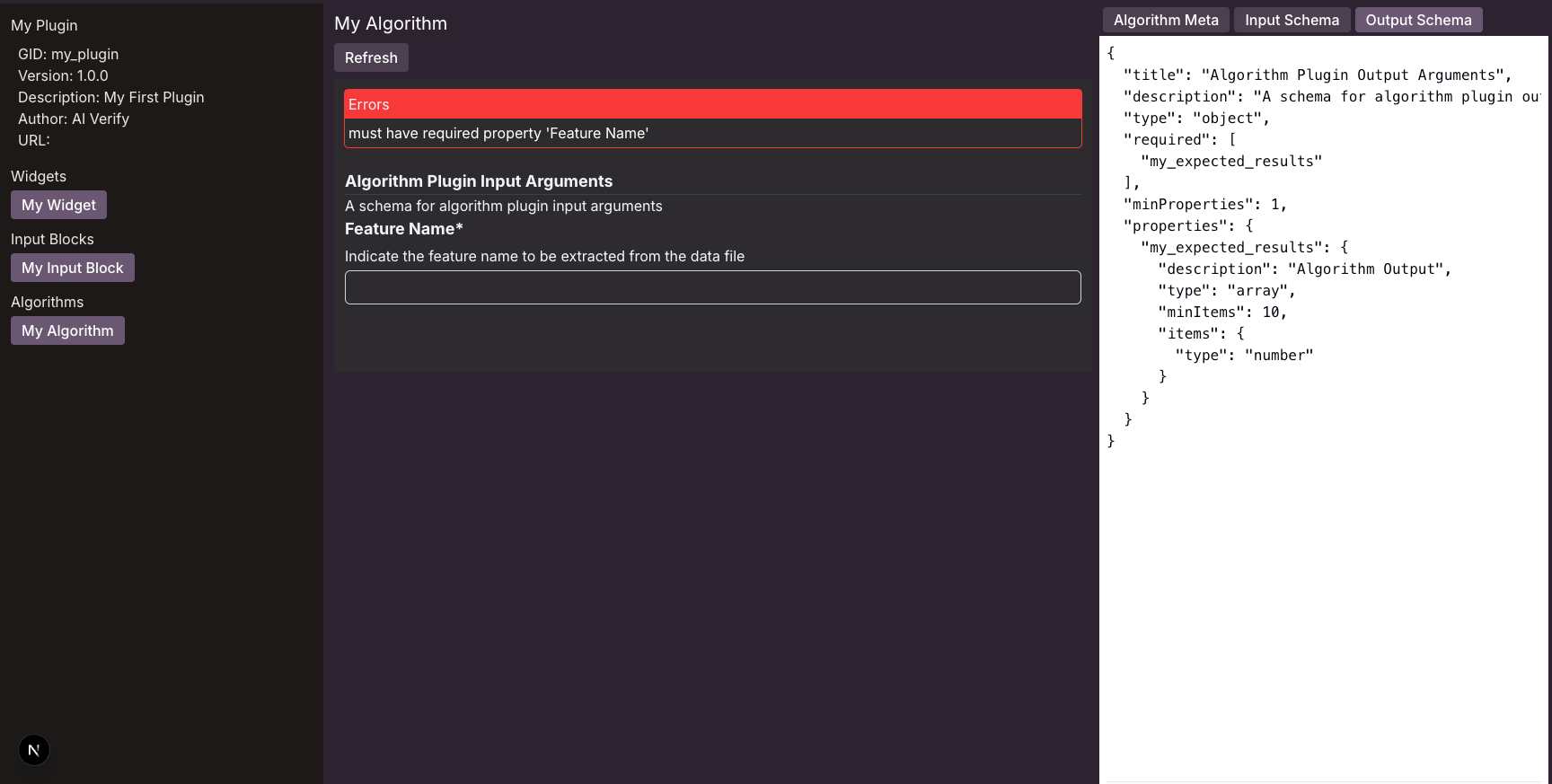

Output Schema

Playground - Input Block

Click on the Output Schema tab to view the output schema defined for this algorithm.
