Installation using Kubernetes

Refer to deployment guide for detailed installation instructions.

Note: The provided YAML files are for reference and may need to be adapted to your specific environment. Consider the following: * Resource Limits: Adjust CPU and memory requests/limits based on your cluster's capacity. * Storage: Configure persistent storage if required. * Networking: Modify service types (e.g., ClusterIP, NodePort, LoadBalancer) based on your networking setup. * Security: Implement security best practices, such as using secrets for sensitive data and enabling network policies.

Step 1: Create the aiverify Namespace

kubectl create namespace aiverify

Step 2: Deploy AI Verify Using Kubernetes YAML Files

  1. Sparse checkout the K8s YAML files: Sparse Checkout of Kubernetes Deployment Files

To clone only the deployment/kubernetes folder from the v2.x branch of the repository, use the following commands:

# Clone the repository with sparse checkout for the specific folder
git clone --filter=blob:none --sparse -b v2.x https://github.com/aiverify-foundation/aiverify.git
cd aiverify
git sparse-checkout set deployment/kubernetes
  1. Apply the YAML Files: Apply the YAML files to deploy AI Verify in the aiverify namespace.
kubectl apply -f <yaml-file> -n aiverify

Repeat this command for each YAML file (e.g., apigw.yaml, portal.yaml, etc.).

kubectl apply -f apigw.yaml
kubectl apply -f portal.yaml
kubectl apply -f valkey.yaml
kubectl apply -f test_engine_worker.yaml

Step 3: Verify the Deployment

After deploying AI Verify, verify that all components are running correctly.

  1. Check Pods: Ensure that all pods are in the Running state.

    kubectl get pods -n aiverify

  2. Check Services: Verify that the services are correctly exposed.

    kubectl get svc -n aiverify

  3. Access AI Verify: Depending on your setup, access AI Verify via the exposed service (e.g., using the service's external IP or port-forwarding).

    kubectl port-forward svc/portal -n aiverify 3000:3000 & \
kubectl port-forward svc/apigw -n aiverify 4000:4000 &

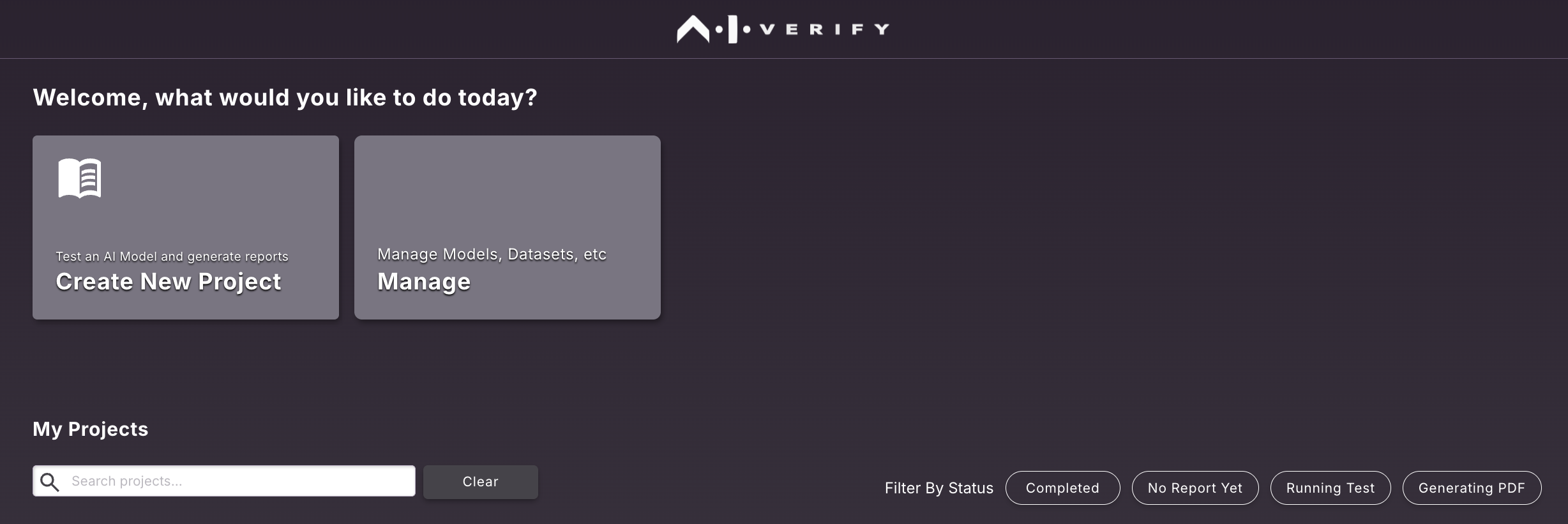

Then, open your browser and navigate to http://localhost:3000.
